Valley Rib Metal Panel

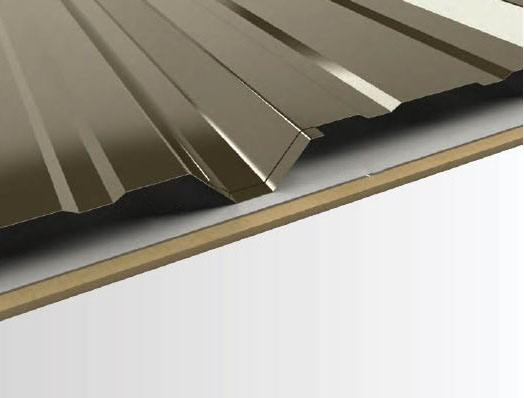

Valley Rib from Evolution Metals is a streamlined, budget-conscious alternative to the PBR panel. Manufactured with a flat overlap (no overbend), Valley Rib is ideal for vertical cladding applications like barn siding, interior wall panels, and utility enclosures.
This panel is run with one side of color paint and provides the same 36” coverage as its PBR counterpart — minus the overbend, making it faster to install for decorative or non-load-bearing applications.

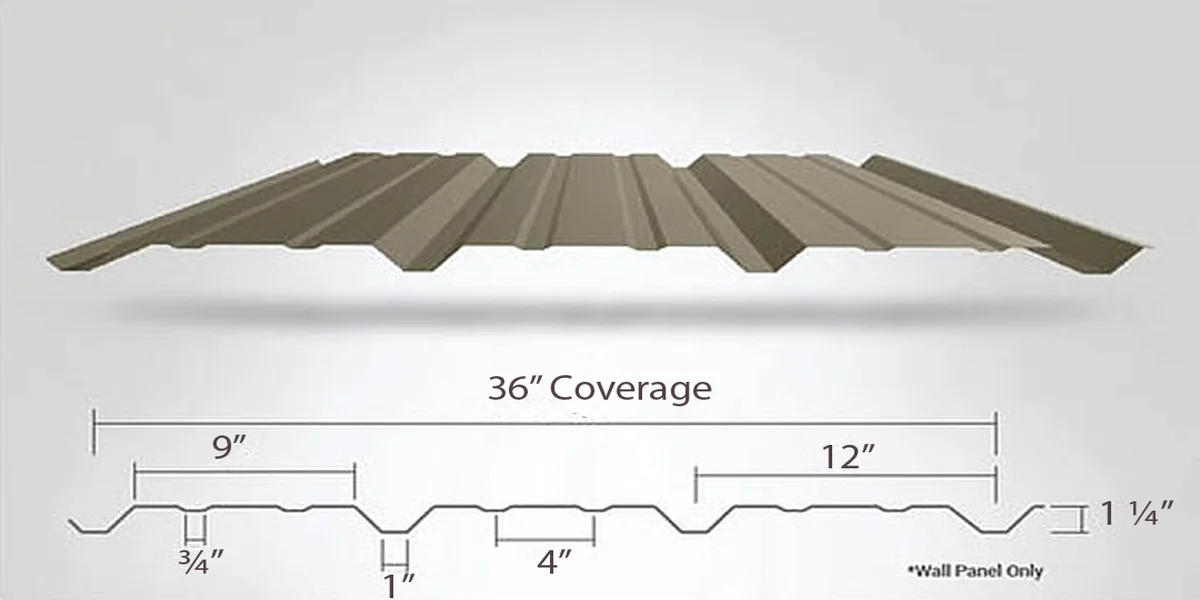

Panel Specifications
| Feature | Specification |
|---|---|
| Wall Coverage | 36" |
| Deck Coverage | 36" |
| Panel Gauges | 26, 29 |
| Fastener Options | Exposed |
| Panel Length |
3' to 43'+ Longer lengths available. Contact a Product Specialist. |
| Rib Height | 1.25" at 12" Centers |
| Roof Slope | Not Rated for Roofing |
| Impact Rating | Not Available |
| Wind Uplift Rating | Not Available |
| Warranty | Based on Paint System — CMG / United Steel Supply |
Installation Notes
Substrate:
Can be installed over plywood sheathing or open framing.
Underlayment:
Vapor-permeable membrane recommended for enclosed areas.
