V Soffit Panel

Evolution's V Soffit Panel delivers clean, modern lines with built-in reinforcement for soffit and wall installations. Designed to blend durability and subtle aesthetics, it's perfect for both residential and commercial projects.

Offered in 12" or 18" widths and available with optional perforations, the V Soffit Panel supports ventilation needs while maintaining a consistent architectural appearance.

This concealed fastener panel can be mounted to wood framing, metal studs, or plywood sheathing, and is available in a variety of gauges and finishes to suit your exterior palette.

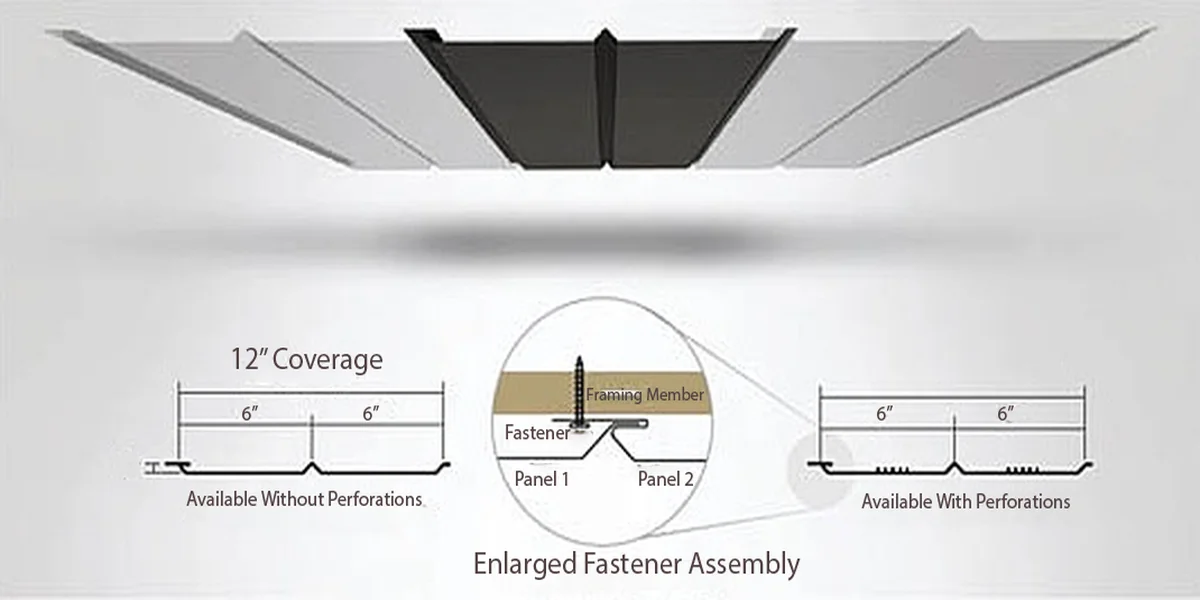

V Soffit concealed fastener soffit panel

Panel Specifications

Feature Specification
Soffit Coverage12" or 18"
Stiffener Spacing6"
Panel Gauges24, 26, 29
Fastener OptionsConcealed Fastener
Max Panel Length10'
Relief Height⅜"
Air Flow DataAvailable Upon Request
PerforationsAvailable
Warranty Based on Paint System — CMG / United Steel Supply

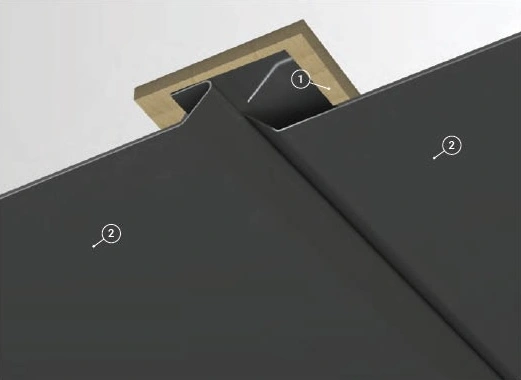

V Soffit Overlap

Panel Overlap Detail

Soffit Substrate:

Can be installed to wood framing, metal framing, or plywood sheathing.

Perforations:

Perforated version available; airflow performance data available upon request.
