V Groove Wall Panel
The V Groove Wall panel delivers a modern aesthetic with clean lines and subtle depth. It’s ideal for high-end commercial and residential wall applications where design matters as much as durability.
Available in 12" and 18" widths, this concealed fastener panel system integrates seamlessly across vertical or horizontal wall elevations. Optional variegated assemblies and precision-engineered striations make it a go-to choice for refined architectural designs.

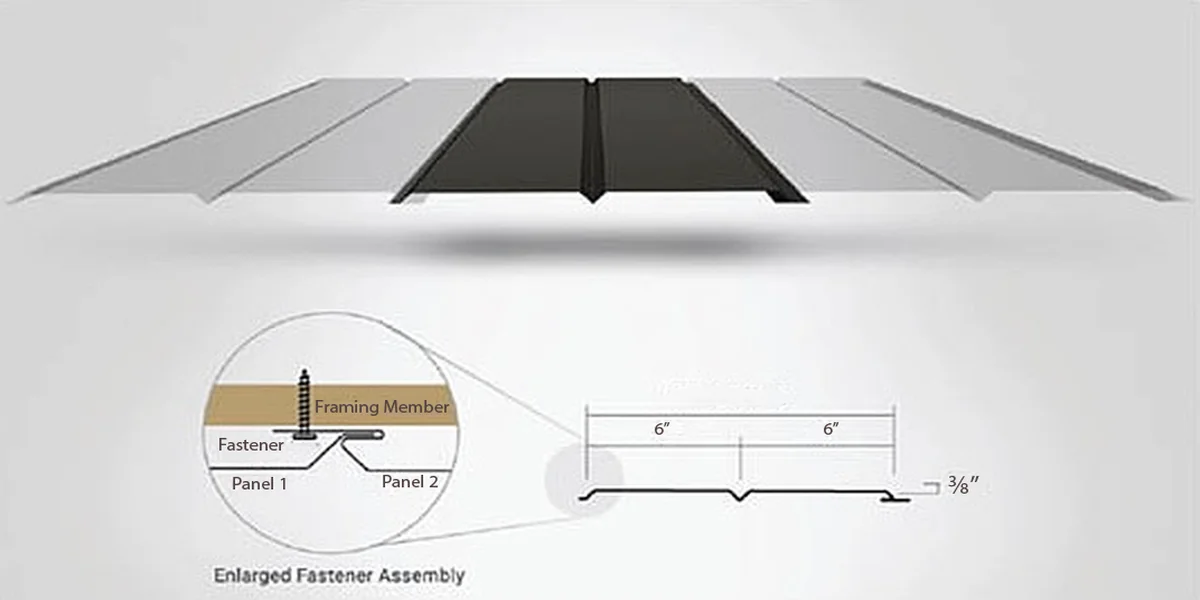

Panel Specifications
| Feature | Specification |
|---|---|
| Wall Coverage | 12" or 18" |
| Panel Gauges | 24, 26, 29 |
| Fastener Options | Concealed Clip System |
| Panel Length | 10' |
| Relief Height | ⅜" |
| Variegated Assembly | Available |
| Impact Rating | Not Available |
| Wind Uplift Rating | Not Available |
| Warranty | Based on Paint System — CMG / United Steel Supply |

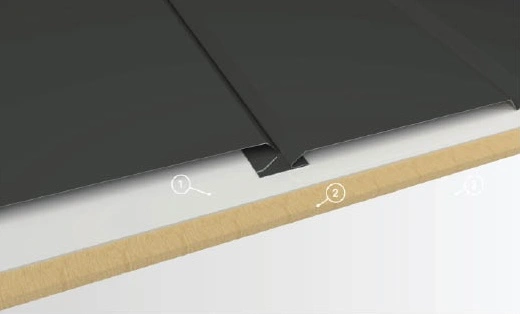

Panel Overlap Details
Underlayment:
High Temp Ice & Water recommended for all exterior applications.
Substrate:
Plywood shown; compatible with open framing depending on structural requirements.
