Tuff Rib Metal Panel

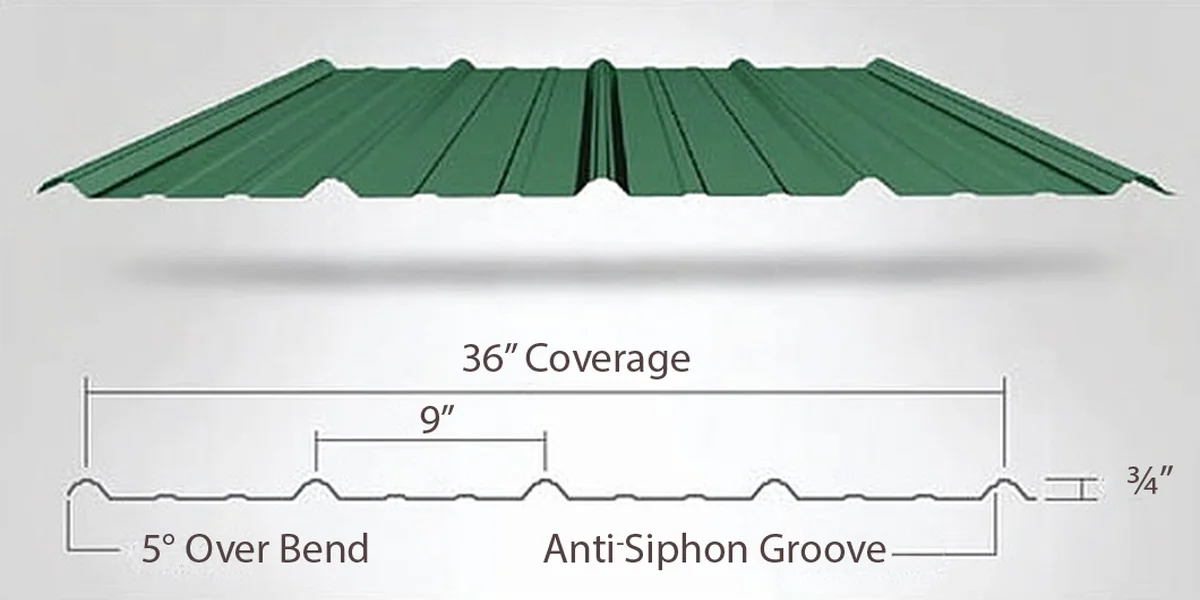

The Tuff Rib panel from Evolution Metals is a classic exposed fastener solution that balances price and performance. This 36" wide panel features a 3/4" rib profile and subtle corrugation, making it a versatile choice for residential roofs, interior walls, and agricultural siding.
With a 5° overbend and integrated anti-siphon groove, Tuff Rib delivers reliable weather resistance even under heavy rain and snow. Pair it with Dripstop lining to control condensation and protect insulation layers in barns, garages, or metal buildings.
Panel Specifications
| Feature | Specification |
|---|---|
| Roof Coverage | 36" |
| Wall Coverage | 36" |
| Panel Gauges | 26, 29 |
| Fastener Options | Exposed |
| Panel Length | 3' to 40' |
| Rib Height | 0.75" at 9" Centers |
| Roof Slope | 3:12 or greater with mastic |
| Impact Rating | UL 2218 |
| Wind Uplift Rating | ASTM 1592, UL 580 |
| Warranty | Based on Paint System — CMG / United Steel Supply |

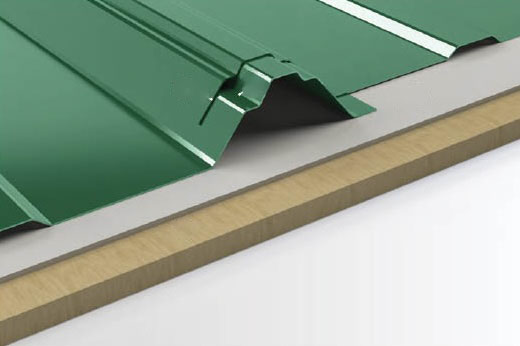

Overlap & Underlayment System
Ensures secure overlap and tight fit between panels.
Built-in moisture defense to block wind-driven rain at panel laps.
High Temp Ice & Water shown — critical for valleys, eaves, and high-moisture zones.
Compatible with solid decking or open framing with max span width of 36”.

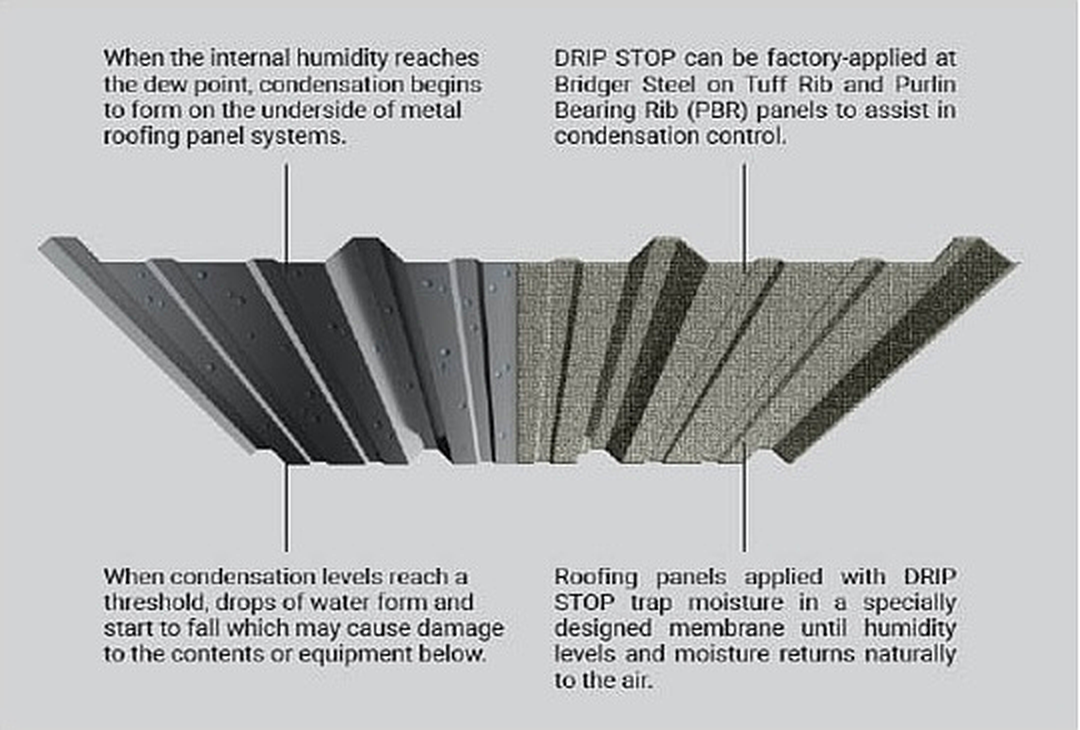

Condensation control membrane adheres directly to underside of panel.
