Tru Snap Standing Seam Panel
Tru Snap is a premium concealed fastener panel offered with 1" or 1.5" rib heights and is ideal for wall and roof systems. Designed to accommodate onsite runs up to 100’, it combines aesthetic appeal with robust performance.
Its engineered snap-lock system provides room for thermal movement and resists oil canning, deformation, fastener fatigue, and expansion stresses — making it a versatile choice for residential and commercial projects alike.

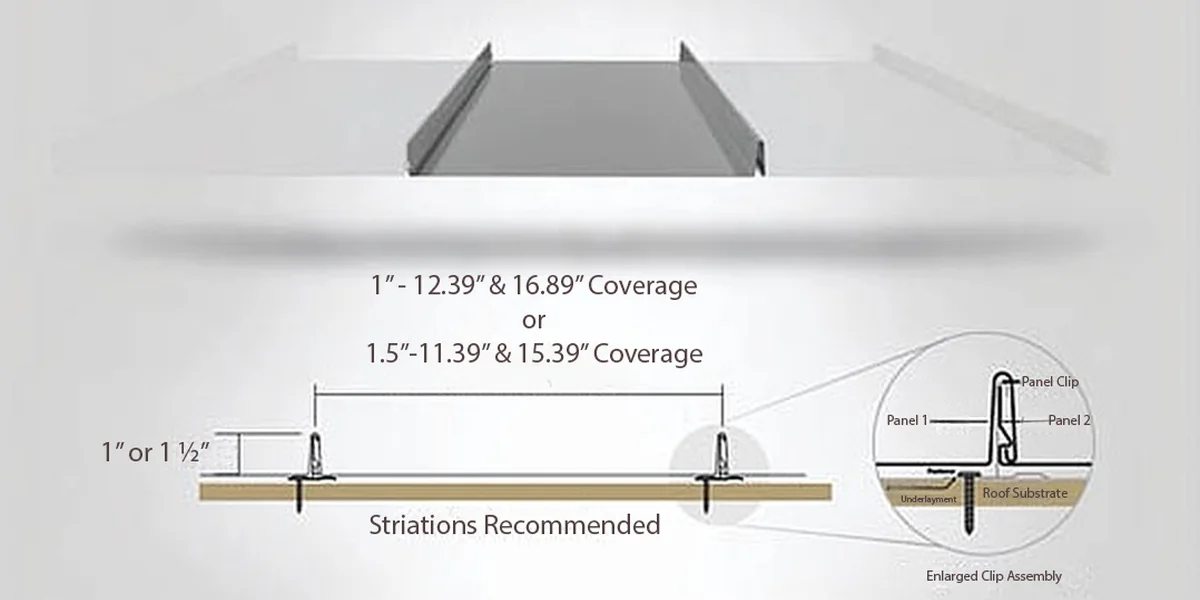

Panel Specifications
| Feature | Specification |
|---|---|
| Roof Coverage |
1" – 12.89" & 16.89" 1.5" – 11.39" & 15.39" |
| Wall Coverage |
1" – 12.89" & 16.89" 1.5" – 11.39" & 15.39" |
| Panel Gauges | 22, 24, 26 |
| Fastener Type | Concealed Clip System |
| Panel Length |
3' to 43' (Shop) Up to 100' (Onsite) |
| Rib Heights | 1" or 1.5" |
| Minimum Roof Slope | 3:12 or greater |
| Impact Resistance | UL 2218 |
| Wind Uplift Rating | ASTM E1592 |
| Warranty | Based on Paint System — CMG / United Steel Supply |

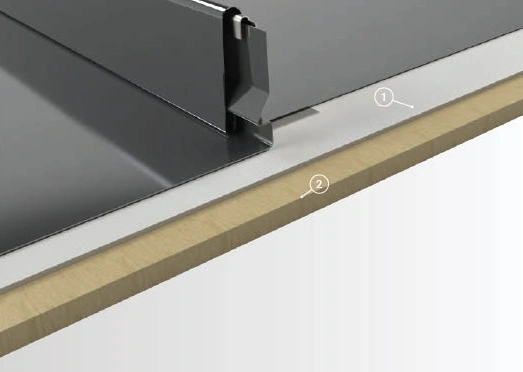

Installation Details
Underlayment:
High Temp Ice & Water shield recommended.
Substrate:
Install over plywood or open framing where applicable.
