Shiplap Metal Wall Panel
Part of Evolution's architectural concealed fastener series, the Shiplap panel is designed to deliver clean lines, a modern profile, and customizable reveals.
Install horizontally or vertically with flush seams or up to 1" reveals in ¼" increments. Popular in both residential and commercial cladding applications, this profile creates bold visual rhythm while maintaining long-term durability.
Shiplap is available with multiple stiffener styles and variegated panel assemblies to fine-tune the appearance to your exact spec.

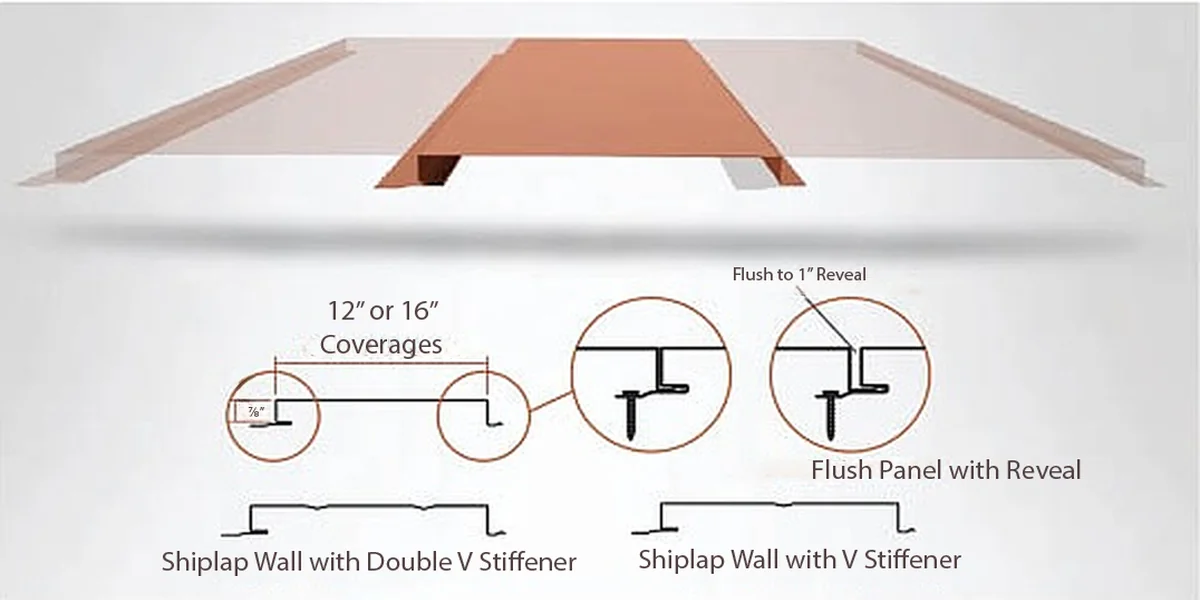

Panel Specifications
| Feature | Specification |
|---|---|
| Wall Coverage | 12" to 16" |
| Reveal Widths | Flush to 1" in ¼" increments |
| Panel Gauges | 22, 24 |
| Fastener System | Concealed Fastener |
| Panel Length | 4' to 30'+ |
| Relief Height | ⅞" |
| Variegated Panel Assembly | Available |
| Stiffener Styles | None, Single V, Double V, Shadow Striations |
| Warranty | Based on Paint System — CMG / United Steel Supply |

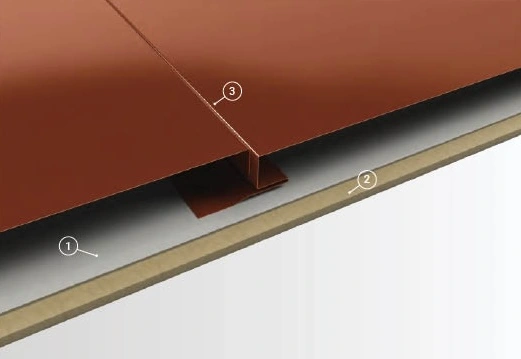

Installation Notes
Substrate:
Plywood material shown in reference image. Can be mounted to solid sheathing or battens.
Underlayment:
Recommend vapor-permeable barrier system beneath paneling.
Reveal Width:
Panel shown with flush seam; up to 1” reveal available in ¼” steps.
