7.2” Structural Metal Panel
The 7.2” Structural Panel from Evolution Metals is engineered for strength, longevity, and versatility in low-slope roofing systems. Whether installed vertically as siding or horizontally on low-pitch roofs, this exposed fastener panel performs exceptionally across commercial, agricultural, and industrial builds.
Its high rib design enhances airflow and drainage while supporting long spans without compromising weather tightness. Install the 7.2” Structural Panel with confidence across roofing systems, enclosures, and large-scale wall cladding.
Specifications
| Feature | Specification |
|---|---|
| Roof Coverage | 36” |
| Wall Coverage | 36” |
| Panel Gauges | 22, 24 |
| Panel Grade | 50 |
| Fastener Options | Exposed |
| Panel Length | 3’ to 43’ |

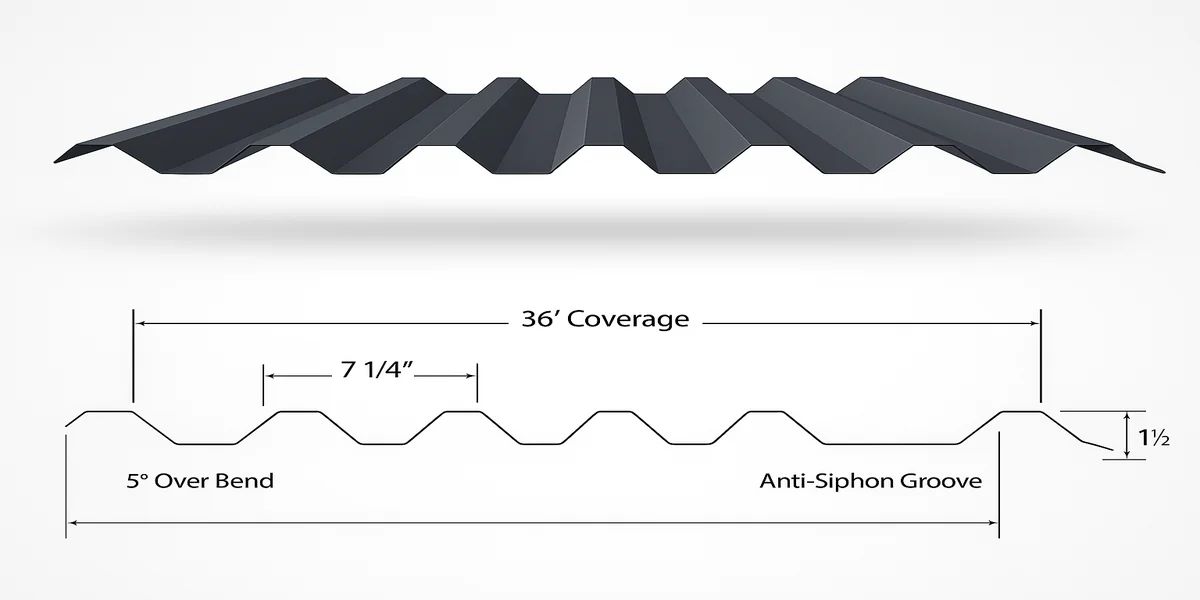

| Rib Height | 1.2” at 7.2” centers |
| Roof Slope | 1:12 or greater with mastic |
| Impact Rating | UL 2218 |
| Wind Uplift Rating | ASTM E1592 |
| Warranty | Based on Paint System — CMG / United Steel Supply |

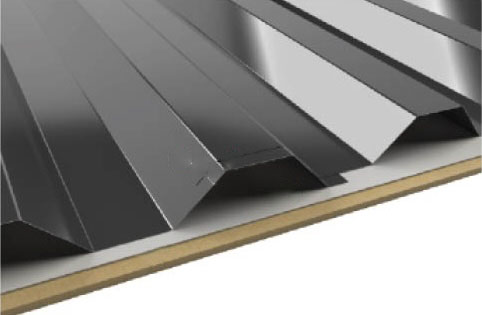

Panel Overlap Construction
Engineered for tight panel overlap on long spans.
Prevents water penetration and facilitates drainage by creating an air gap.
High Temp Ice & Water membrane shown. Essential for valley and eave protection.
Plywood shown, but may be installed over open framing with 60” max spans.
