1/2” Corrugated Metal Panel
The 1/2" Corrugated panel provides a timeless aesthetic and reliable performance for residential, agricultural, or light commercial use. Designed for shorter spans and easier installation, it's perfect for everything from roofing and siding to interior wainscoting and decorative accents.
Technical Specifications
| Feature | Specification |
|---|---|
| Roof Coverage | 24” |
| Wall Coverage | 24” |
| Panel Gauges | 22, 24, 28 |
| Panel Grade | 50 |
| Fastener Options | Exposed |
| Panel Length | 28” to 20’ |

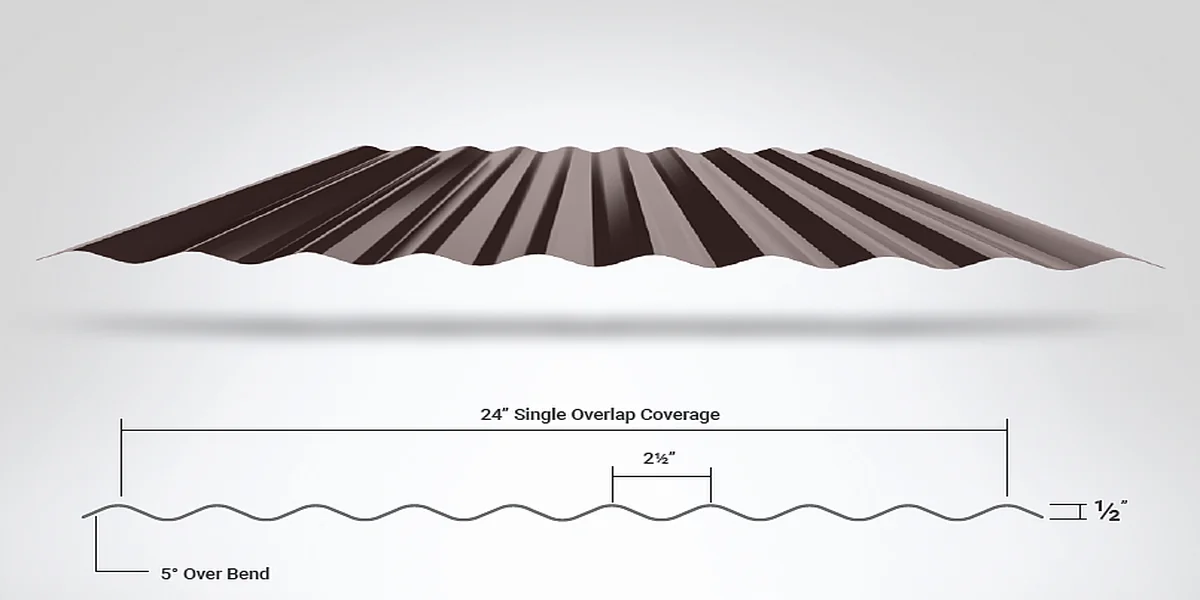

| Rib Height | 1/2” at 2 1/2” centers |
| Roof Slope | 3:12 or greater with mastic |
| Impact Rating | UL 2218 |
| Wind Uplift Rating | Not Available |
| Warranty | Based on Paint System — CMG / United Steel Supply |

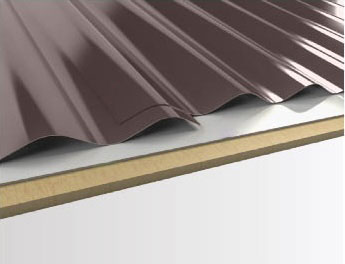

Panel Overlap Construction
Underlayment:
High Temp Ice & Water shield shown, recommended for eaves and valleys.
Substrate:
Standard plywood substrate depicted.
Overlap:
Single overlap configuration for traditional installation.
